Features:
1. Good ability for high rate discharge.
2. Unique corrosion resistance grid alloy: long service life, and good ability to work at low temperature.
3. High purity raw material: low self discharge rate.
4. Good quality AGM separator: extend cycle life and prevent micro short circuit.
5. Oxygen recombination technology: safe and eco-friendly.
Applications:
EPS and UPS system
Electric tool
Lighting equipment, fire alarms and security systems
Communication and telecom system
Specification:
Model | Norminal Voltage（V） | Rated Power (W) | Capacity (Ah) | Dimension (mm) | Weight (kg±3%) | Terminal | Terminal Position | Screw | |||
L | W | H | Total H | ||||||||

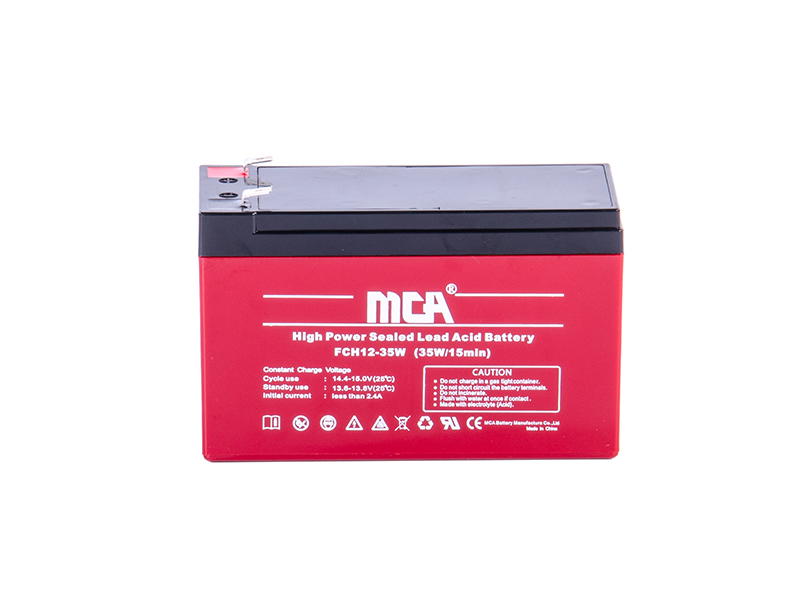

12 | 35/15min | 8/10HR | 151 | 65 | 94 | 100 | 2.55 | F2 | D | / | |
12 | 55/15min | 12/10HR | 152 | 99 | 96 | 102 | 3.8 | F2 | D | / | |
12 | 85/15min | 20/10HR | 181 | 77 | 167 | 167 | 6.5 | T1 | B | M5×16 | |
12 | 115/15min | 28/10HR | 165 | 126 | 174 | 174 | 8.7 | T2 | B | M6×16 | |
12 | 145/15min | 34/10HR | 196 | 130 | 155 | 167 | 11 | T3 | A | M6×16 | |
12 | 170/15min | 42/10HR | 198 | 166 | 174 | 174 | 13.8 | T2 | B | M6×16 | |
FCH12-230W | 12 | 230/15min | 60/10HR | 229 | 138 | 208 | 212 | 19.2 | T3 | B | M6×16 |
FCH12-290W | 12 | 290/15min | 75/10HR | 350 | 167 | 178 | 178 | 23 | T3 | B | M6×16 |
FCH12-300W | 12 | 300/15min | 80/10HR | 260 | 169 | 211 | 215 | 25 | T3 | A | M6×16 |
FCH12-370W | 12 | 370/15min | 95/10HR | 307 | 169 | 211 | 215 | 31 | T3 | A | M6×16 |
FCH12-420W | 12 | 420/15min | 110/10HR | 331 | 174 | 214 | 219 | 33.2 | T4 | B | M8×18 |
FCH12-470W | 12 | 470/15min | 125/10HR | 407 | 174 | 208 | 233 | 39 | T5 | A | M8×18 |
FCH12-520W | 12 | 520/15min | 150/10HR | 484 | 171 | 241 | 241 | 47 | T4 | A | M8×18 |
FCH12-540W | 12 | 540/15min | 155/10HR | 328 | 182 | 264 | 271 | 46 | T5 | A | M8×18 |
FCH12-620W | 12 | 620/15min | 165/10HR | 532 | 206 | 215 | 219 | 58 | T5 | C | M8×18 |
FCH12-680W | 12 | 680/15min | 170/10HR | 532 | 206 | 215 | 219 | 60.5 | T5 | C | M8×18 |
FCH12-770W | 12 | 770/15min | 210/10HR | 522 | 240 | 219 | 223 | 69 | T6 | C | M8×18 |
FCH12-800W | 12 | 800/15min | 220/10HR | 520 | 268 | 204 | 208 | 70 | T6 | C | M8×18 |
FCH12-900W | 12 | 900/15min | 250/10HR | 520 | 268 | 221 | 225 | 80.5 | T6 | C | M8×18 |
FCH6-720W | 6 | 720/15min | 180/10HR | 260 | 180 | 246 | 252 | 30.5 | T5 | F | M8×18 |
